Set Color Source Color
Set a random or a HEX color for a color source

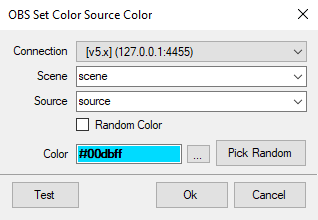

Set Color Source Color Dialog
Parameters
Connection
Select
Default:
Default
Select the configured OBS Studio Connection to connect to
| Value | Description |
|---|---|
Default | Only the default configured OBS Studio connection |
Any | All configured OBS Studio connections |
Scene
Combobox
Select a scene from the list populated from OBS Studio
You can also manually type a name into the box, or utilize
%variable% syntax to insert an argument value.Source
Combobox
Select a source from the list populated from OBS Studio
You can also manually type a name into the box, or utilize
%variable% syntax to insert an argument value.Random Color
Checkbox
This gets a random HEX color each time this sub-action runs
Color
Color required
Choose a color, using the #RRGGBBAA format
Variables
| Name | Type | Description |
|---|---|---|
Variables generated by all triggers and available within all action executions. |
C# Usage
public void ObsSetColorSourceColor(string scene, string source, int a, int r, int g, int b, int connection = 0)
public void ObsSetColorSourceRandomColor(string scene, string source, int connection = 0)
