Flip Source
Flip a source horizontally, vertically or both

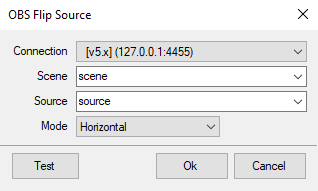

Flip Source Dialog
Parameters
Connection
Select
Default:
Default
Select the configured OBS Studio Connection to connect to
| Value | Description |
|---|---|
Default | Only the default configured OBS Studio connection |
Any | All configured OBS Studio connections |
Scene
Combobox
Select a scene from the list populated from OBS Studio
You can also manually type a name into the box, or utilize
%variable% syntax to insert an argument value.Source
Combobox
Select a source from the list populated from OBS Studio
You can also manually type a name into the box, or utilize
%variable% syntax to insert an argument value.Mode
Select required
Default:
Horizontal
Select the direction to flip the source
| Value | Description |
|---|---|
Horizontal | Flip the source horizontally |
Vertical | Flip the source vertically |
Both | Flip the source both horizontally and vertically |
Variables
| Name | Type | Description |
|---|---|---|
Variables generated by all triggers and available within all action executions. |
