OBS Raw Requests in C#
An example how to send OBS Raw requests and work with the responses in C#
You are probably already familiar with sending OBS Raw requests with Streamer.bot's OBS Raw Generator or the Raw subaction that you find under OBS -> Raw
. Sending it vía the subaction then populates variables that you can further use in your action. Sending Raw requests in C# however works a little different.
Instructions
- Retrieving the CPH method
To avoid typing out the entireCPH.SendObsRaw()
request by hand, we can make use of the Copy CPH function of Streamer.Bot's OBS Raw Generator.
In our example, we want to send aGetInputSettings
request to get the text of a Text (GDI+) source called Bitrate Text. Copying the CPH method leaves us with this in our clipboard:CPH.ObsSendRaw("GetInputSettings", "{\"inputName\":\"Bitrate Text\"}", 0);
- Creating the C# code
Now we can paste that method into our C# code.using System; public class CPHInline { public bool Execute() { CPH.ObsSendRaw("GetInputSettings", "{\"inputName\":\"Bitrate Text\"}", 0); return true; } }
Running that code will send the request, but we still don't have a way to fetch the response information. By taking a look into the docs for the C# methods, we can see that the request also returns a string. So we simply declare a string and have the request as its value.using System; public class CPHInline { public bool Execute() { string getInputSettingsResponse = CPH.ObsSendRaw("GetInputSettings", "{\"inputName\":\"Bitrate Text\"}", 0); return true; } }
- Parsing the response
The response we get is actually just plain text in a JSON format. You can check that by logging that info withCPH.LogInfo(getInputSettingsResponse);
or by using the OBS Raw Generator.{ "inputKind": "text_gdiplus_v3", "inputSettings": { "color": 8388437, "font": { "face": "Neue Haas Grotesk Text Pro Extr", "flags": 0, "size": 144, "style": "ExtraLight" }, "text": "Current bitrate: 7500" } }
Now we specifically want thetext
andfontsize
properties from that entire request. To do that, we need to parse the string into a JObject first. So we add the namespaceusing Newtonsoft.Json.Linq;
and use theJObject.Parse()
method.using System; using Newtonsoft.Json.Linq; public class CPHInline { public bool Execute() { string getInputSettingsResponse = CPH.ObsSendRaw("GetInputSettings", "{\"inputName\":\"Bitrate Text\"}", 0); JObject inputSettingsJObject = JObject.Parse(getInputSettingsResponse); return true; } }
- Getting specific properties
This now allows us to directly pick the info we want. As seen in the response, the object is calledinputSettings
and the propertiestext
andfont
->size
.
To get thetext
property, we can just declare a string and parse that property:string gdiText = (string)inputSettingsJObject["inputSettings"]["text"];
Thesize
property is a number and also nested within thefont
property, so we need to adjust that:int fontSize = (int)inputSettingsJObject["inputSettings"]["font"]["size"];
So the entire code looks like this:using System; using Newtonsoft.Json.Linq; public class CPHInline { public bool Execute() { string getInputSettingsResponse = CPH.ObsSendRaw("GetInputSettings", "{\"inputName\":\"Bitrate Text\"}", 0); JObject inputSettingsJObject = JObject.Parse(getInputSettingsResponse); string gdiText = (string)inputSettingsJObject["inputSettings"]["text"]; int fontSize = (int)inputSettingsJObject["inputSettings"]["font"]["size"]; return true; } }
- Checking the response
To make sure we got that info correctly, we can output both of them into our logs aswell:CPH.LogInfo($"GDI Text: {gdiText} // Font Size: {fontSize}");
And checking our logs shows that it worked![2024-08-11 19:13:48.297 INF] GDI Text: Current bitrate: 7500 // Font Size: 144
- Using those variables to send another Raw request
With our newly obtained information, we can use that variables to send another response. Let's say, we have another text source and want to give it the same text and font size as our Bitrate Text source. So we paste the setting parameters into the OBS Raw Generator and copy the CPH method:{ "font": { "size": 144 }, "text": "7500" }
CPH.ObsSendRaw("SetInputSettings", "{\"inputName\":\"Other Textsource\",\"inputSettings\":{\"font\":{\"size\":144},\"text\":\"7500\"},\"overlay\":true}", 0);
- Replace variablesVariables within CPH.ObsSendRaw Requests
To use variables within the request, we format them like this:" + variableName + "

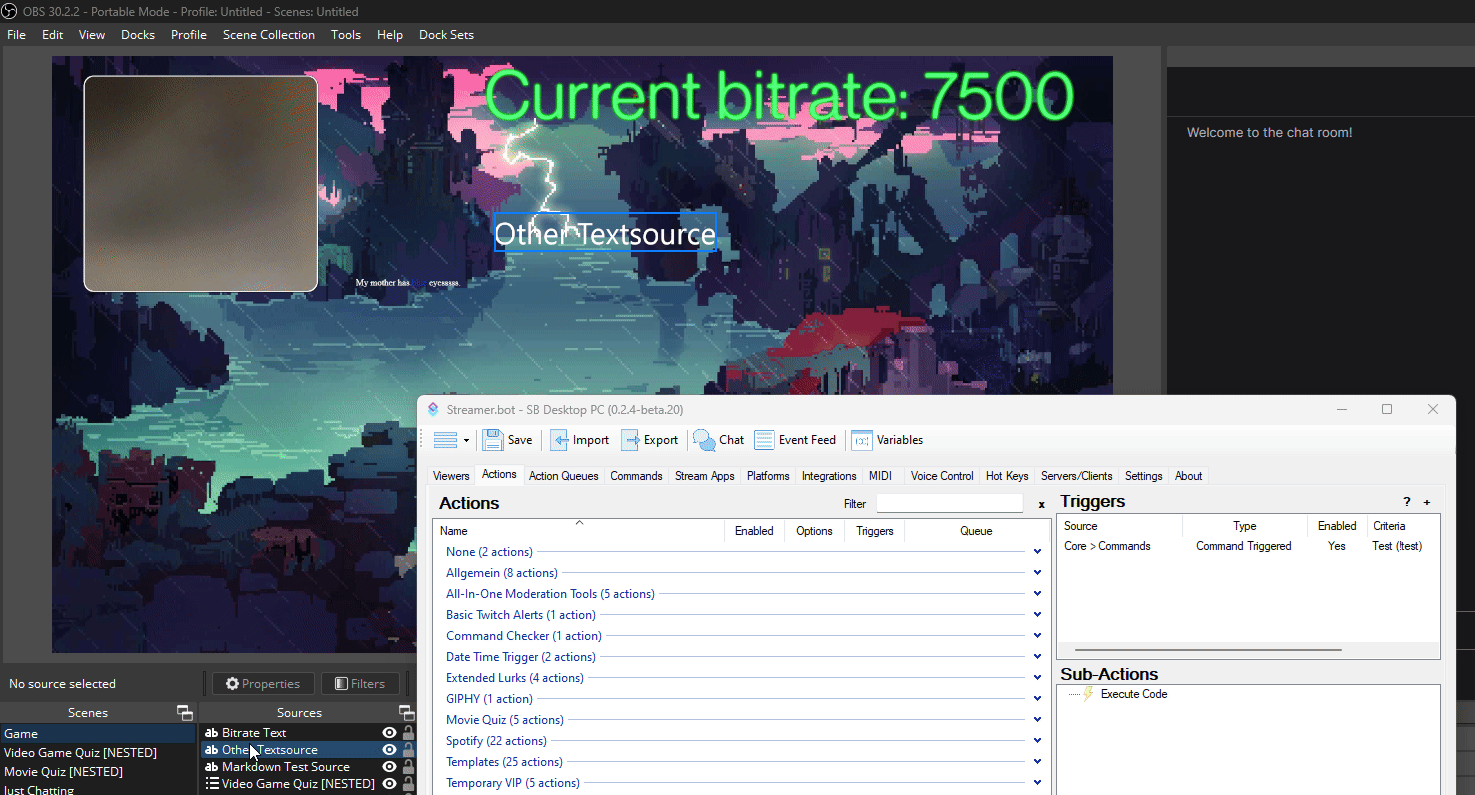

using System; using Newtonsoft.Json.Linq; public class CPHInline { public bool Execute() { string getInputSettingsResponse = CPH.ObsSendRaw("GetInputSettings", "{\"inputName\":\"Bitrate Text\"}", 0); JObject inputSettingsJObject = JObject.Parse(getInputSettingsResponse); string gdiText = (string)inputSettingsJObject["inputSettings"]["text"]; int fontSize = (int)inputSettingsJObject["inputSettings"]["font"]["size"]; CPH.ObsSendRaw("SetInputSettings", "{\"inputName\":\"Other Textsource\",\"inputSettings\":{\"font\":{\"size\": " + fontSize + "},\"text\":\" " + gdiText + "\"},\"overlay\":true}", 0); return true; } }
- Done! You are now able to send an OBS Raw request as well as fetch info from an OBS Raw request in C#!
