Move Model
Mode the currently loaded model

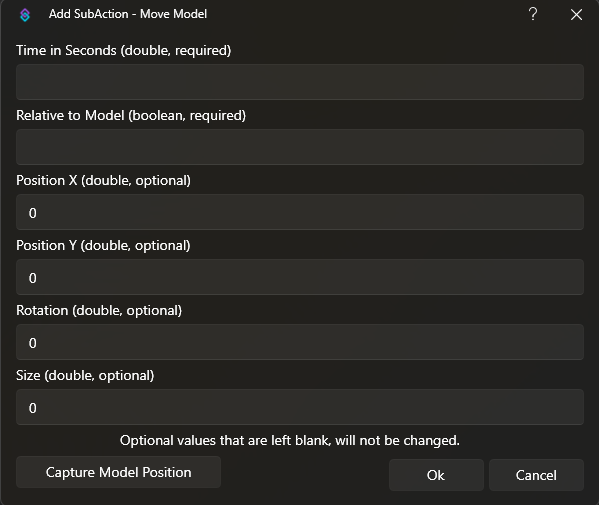

Move Model Dialog

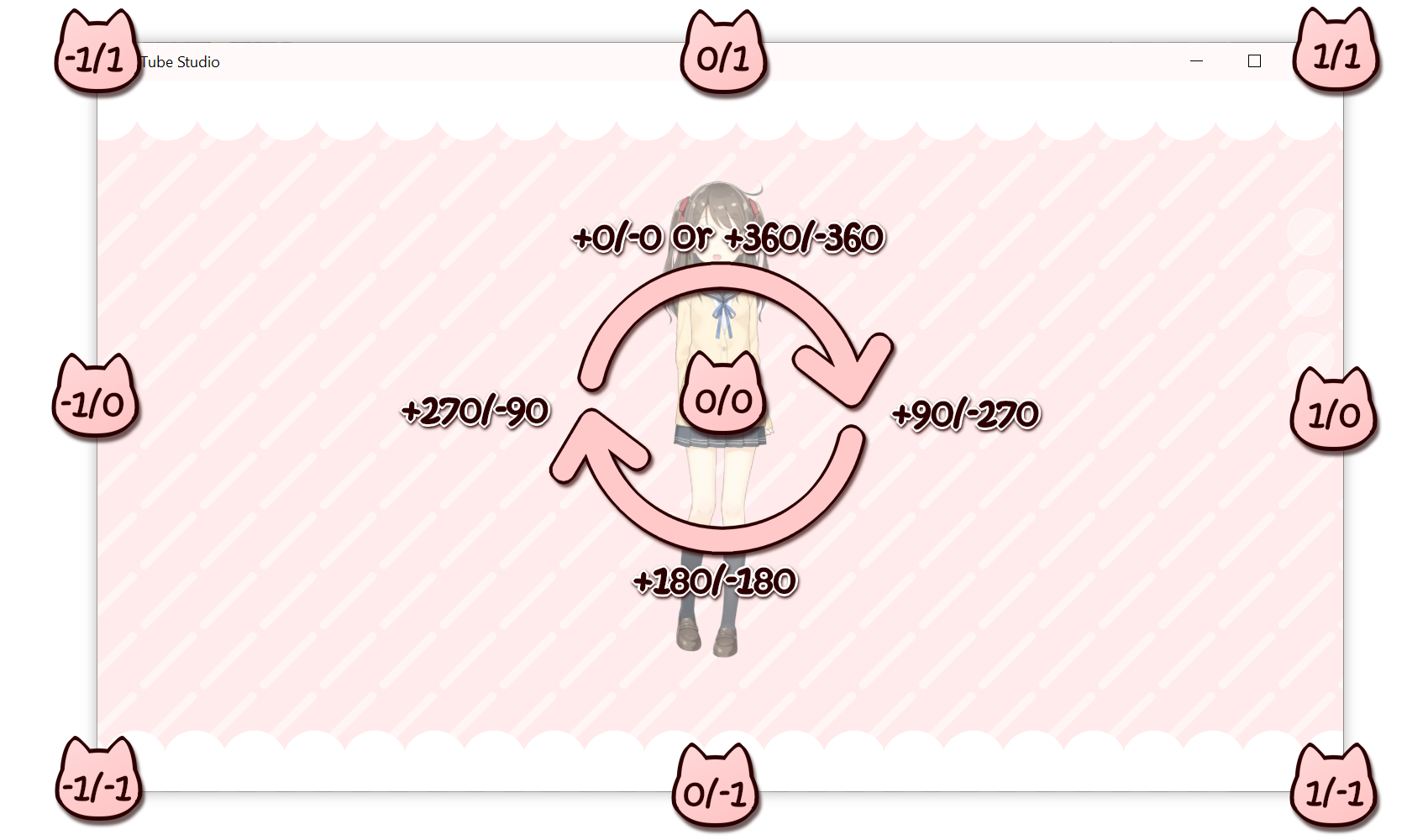

The VTS Coordinate System
VTS Coordinate System
Parameters
Time in Seconds
Float required
Time in seconds the movement should take (has to be between 0 and 2)
Relative to Model
Bool required
Flag whether the values are relative to the model's current position
Position X
Float
X Position of the model (between -1 and 1, see image)
Position Y
Float
Y Position of the model (between -1 and 1, see image)
Rotation
Float
Rotation of the model (between -360 and 360, see image)
Size
Float
Size of the model (between -100 and 100)
Variables
| Name | Type | Description |
|---|---|---|
Example Value: True/Falseindicator whether the movement has been successful or not | ||
Variables generated by all triggers and available within all action executions. |
C# Usage
public bool VTubeStudioMoveModel(double seconds, bool relative, Double? posX, Double? posY, Double? rotation, Double? size)
CPH.VTubeStudioMoveModel(seconds, relative);
CPH.VTubeStudioMoveModel(seconds, relative, posX, posY, rotation, size);
