Switch

Allows for multi-way branching based on the value of an expression

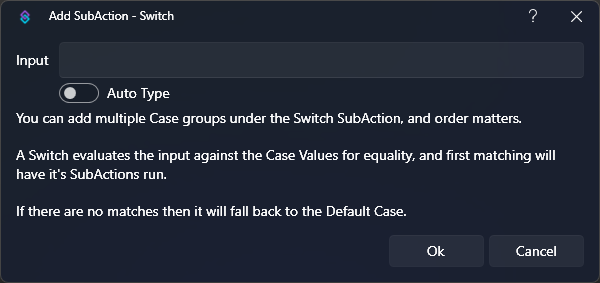

Switch Dialog
Switch Dialog

You can add any number of cases to a switch by right clicking on the switch Sub-Action and selecting "Add Case"

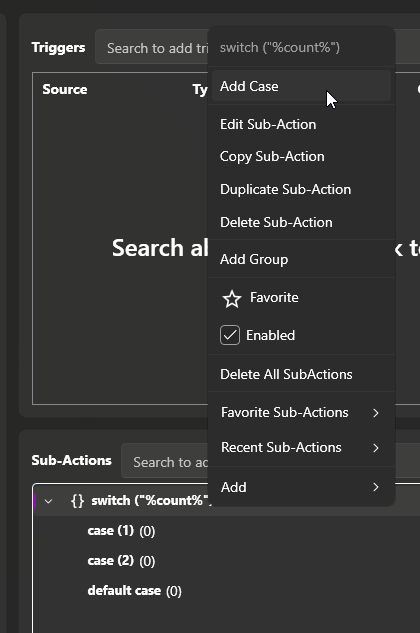

Switch context menu showing "Add Case" option

Switch context menu showing "Add Case" option

You can add one or more values to a case. If any of the case's values match the switch input, that case will be executed.

For example, in the image below, if the %count% value is 1, the first case will be executed.

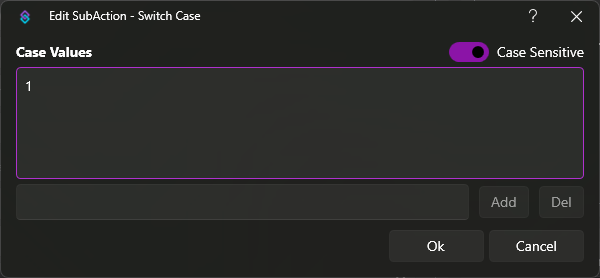

Add Case Dialogue

Add Case Dialogue

Only the first matching case will be executed.
  • If no cases match, the default case will be executed.

Parameters

Input
Text required

Enter the value for the left hand side of the comparison, this input supports full variable parsing and inline functions

Auto Type
Toggle
Default:
false

By default, values which have not already been typed are treated as text, or string variables.

Enable Auto Type to automatically determine the type for the variable value.

For example:

  • 0 can be auto-typed to a numeric type such as int or long
  • true or false can be auto-typed to a bool
