Set Sub-Action State

Enable or disable specific sub-actions within an action

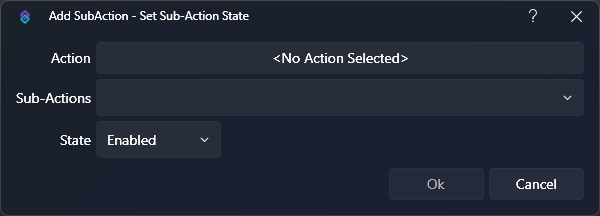

Set Sub-Action State Dialog
Set Sub-Action State Dialog
To modify the state of an entire action, and all sub-actions, see the Set Action State sub-action

Parameters

Action
Select required

Choose the parent action of the sub-action you wish to modify

Sub-Action
Select required

Choose the specific sub-action you wish to modify

State
Number

Optionally select a specific button state to modify

  • By default, all sub-actions will modify the first button state, 0
  • For example, to modify the 2nd state of an Action Switch, set State to 1
